Wafer Bonding for MEMS Devices: Techniques and Considerations

• August 12, 2024
• WaferPro
• 0

At WaferPro, we have over 20 years of experience with wafer bonding and its applications in MEMS devices. As a leading provider of wafer bonding services, we understand the critical role bonding plays in enabling many MEMS products. In this article, we'll provide an overview of key wafer bonding techniques and considerations for MEMS applications.

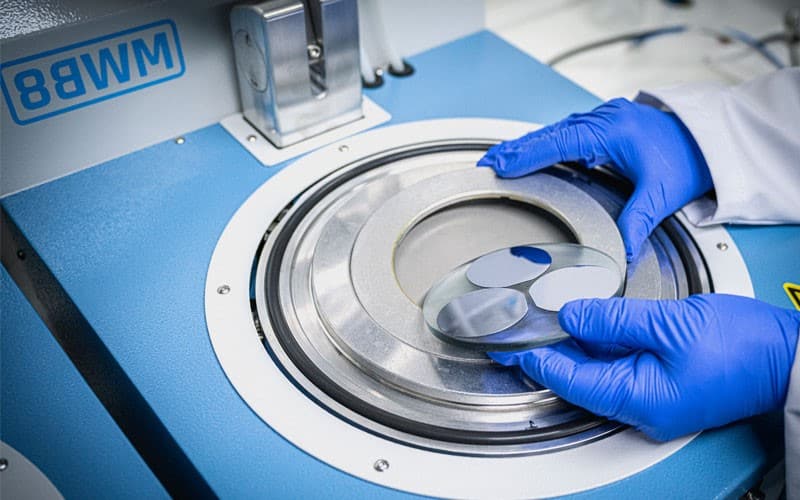

Overview of Wafer Bonding

Wafer bonding refers to joining two substrates together to create a multilayer structure. In MEMS devices, wafer bonding allows the integration of different materials and functions into a small form factor. Some key techniques utilized for MEMS wafer bonding include:

• Direct bonding
• Anodic bonding
• Adhesive bonding
• Eutectic bonding
• Glass frit bonding

We'll explore the specifics of each further below. But first, let's look at some general considerations when selecting a wafer bonding technique:

• Materials being joined
• Bonding temperature limits
• Alignment accuracy needs
• Hermeticity requirements
• Electrical conductivity needs
• Cost targets

Understanding device requirements around these parameters helps narrow down bonding options. Our experts at WaferPro can consult on the optimal approach for your project.

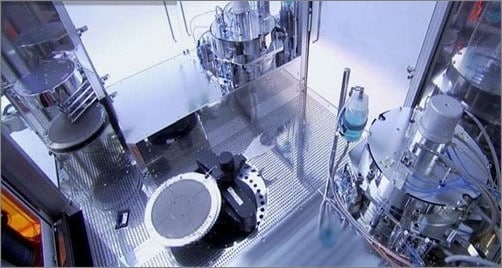

Key Wafer Bonding Techniques for MEMS

Direct Wafer Bonding

Direct wafer bonding creates a molecular bond between two substrates without any intermediate layers. It requires mirror-smooth surfaces and forms a strong interface through bonds like hydrogen, van der Waals, or covalent.

Key attributes:

• Joins bare substrates without adhesives
• Provides high bond strength when annealed >800-900°C
• Enables MEMS seals with excellent hermeticity
• Restricted to material pairs that bond (e.g. silicon to silicon)

This technique is extensively used to fabricate silicon-on-insulator (SOI) wafers critical for many MEMS devices.

Anodic Bonding

Anodic bonding uses high voltage to drive a chemical bond between glass and silicon substrates. The process induces material transport between the plates to fuse them together.

Advantages:

• Bonds at temperatures as low as 200-500°C
• Creates a strong, hermetic seal
• No intermediate layers required

The capability to bond silicon to glass makes anodic bonding valuable for optical MEMS components like display mirrors or biomedical microfluidic devices.

Adhesive Wafer Bonding

This flexible adhesive bonding approach uses polymer materials like BCB, PDMS, or epoxies to join substrates. The adhesive layer can range from 1 to 100s of microns thick.

Benefits include:

• Low temperature process
• Bind dissimilar materials like silicon to glass
• Planarize bonding surface

Adhesive bonding is simple and accessible. But limitations around hermeticity, outgassing, and thermal stability restrict use for certain MEMS devices.

Eutectic Bonding

Eutectic bonding creates an interface between metal films deposited on each substrate. heating forms a liquid metal phase at the eutectic temperature, enabling alloys to solidify across the wafers.

Key traits:

• Hermetic seals with high bond strength
• Lower process temperatures (250-400°C)
• Electrically conductive interface

Gold-tin is a common material system, but many metal combinations work. This approach provides robust bonding solutions for wafer-level packaging of MEMS.

Glass Frit Bonding

Also called glass bonding, this method places a spun-on glass powder slurry at the bond interface. Under heat, the glass frit reflows then hardens to fuse substrates.

Major pros:

• Excellent hermeticity up to 10^-8 atm-cc/sec
• Low bonding temperatures (300-500°C)
• SOI and silicon-glass bonding

Glass frit bonding handles various material pairs and enables wafer-level encapsulation for inert MEMS environments.

Comparison of Wafer Bonding Methods

Bonding Method	Bonding Temperature	Typical Materials	Hermeticity
Direct Bonding	>800°C	Silicon, silicon dioxide, silicon nitride	Excellent
Anodic Bonding	200-500°C	Silicon, glass	Excellent
Adhesive Bonding	<500°C	Dissimilar material pairs	Low to moderate
Eutectic Bonding	250-400°C	Metal films	Excellent
Glass Frit Bonding	300-500°C	Silicon, glass	Excellent

This comparison highlights key differences between popular bonding techniques for MEMS fabrication. Selecting the right approach depends on factors like materials, thermal budgets, seal performance, and other design constraints.

The WaferPro Advantage

With state-of-the-art wafer bonding equipment and over 450 R&D projects executed, WaferPro offers the following benefits for your MEMS bonding needs:

• Flexible volume production from prototype to high-volume manufacturing
• Superior bond quality and yield enabled by market-leading bonders
• Advanced metrology and characterization to optimize your process
• Experienced engineering teams to collaborate on process development
• Fast turnaround time and excellent customer service

Contact our technical sales staff to discuss your particular MEMS device requirements. We look forward to working with you!
